Taming the Helix


This section refers to the Corkscrew-Lines mk1 which is now dismantled.  This section will be updated as the mk2 version is constructed.


The Helix is the beast that sits at the heart of the Corkscrew Lines and allows trains to travel up and down between the 4 levels.  This is a photo gallery showing the process involved in it's construction.  Full full details of the thinking and construction techniques used see the individual posts.  When finished and linking all levels it will be 6ft tall.

 Up and down and round the bend......the story of my life!

How things currently look

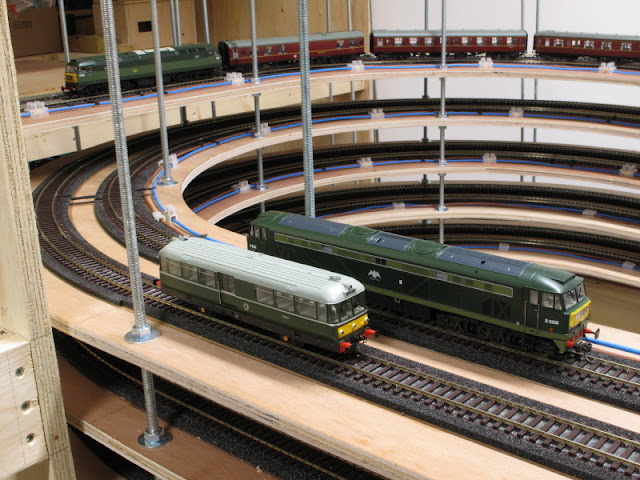

Currently the helix makes 5 turns between the low level storage area and the peninsula on level 2 which is the first of the scenic areas.  Have a look at the plans for the layout to get an idea for where the tracks go and how they interact with each other.  From the earliest template boards to the installation of the threaded rods, the following photos show the general process and system used.  For full details, as stated above, check the individual posts in the blog.
